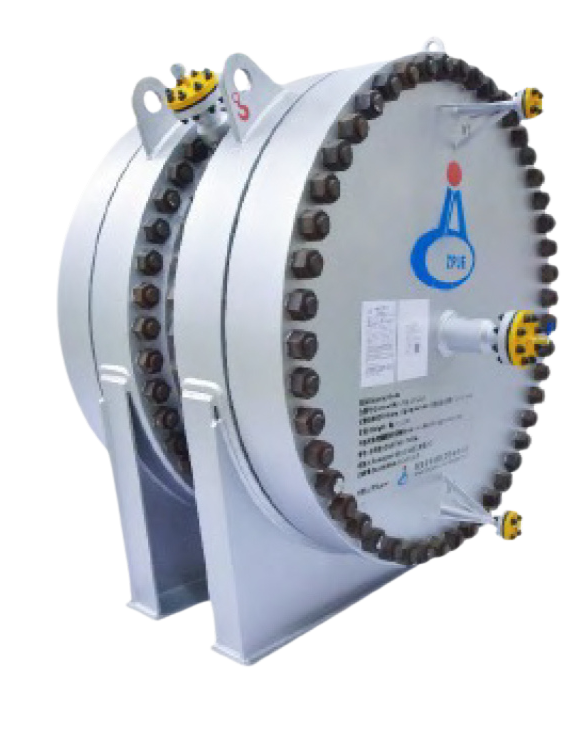

Spiral Plate Heat Exchanger
Product Overview
- Suitable for processes involving dirty fluids, high viscosity, and high solid content, particularly where high heat transfer performance is required, such as tower bottom heavy oil coolers, high-pressure steam generators in hot high-pressure separators, and slurry bed residue hydrotreating units.
- The heat exchanger provides high thermal efficiency, allows easy disassembly and cleaning, and offers long service life.
Key Features&Benefits
Energy Saving
Resistant to Process Fluctuations
Flexible Flow Configuration
Easy Cleaning
Compact Design
Manufacturing Capabilities
| Specification Item | Specification Value |
|---|---|
| Maximum Design Temperature | 550°C |
| Maximum Vessel Diameter | 3600mm |
| Maximum Vessel Width | 2440mm |
| Maximum Design Pressure | 6.0MPa |
| Maximum Plate Thickness | 7mm |
| Automatic Welding Thickness Range | 5–32mm |
